Unique design high resolution smart diving mask with integrated diving computer

• The diving mask integrates the basic function of diving computer

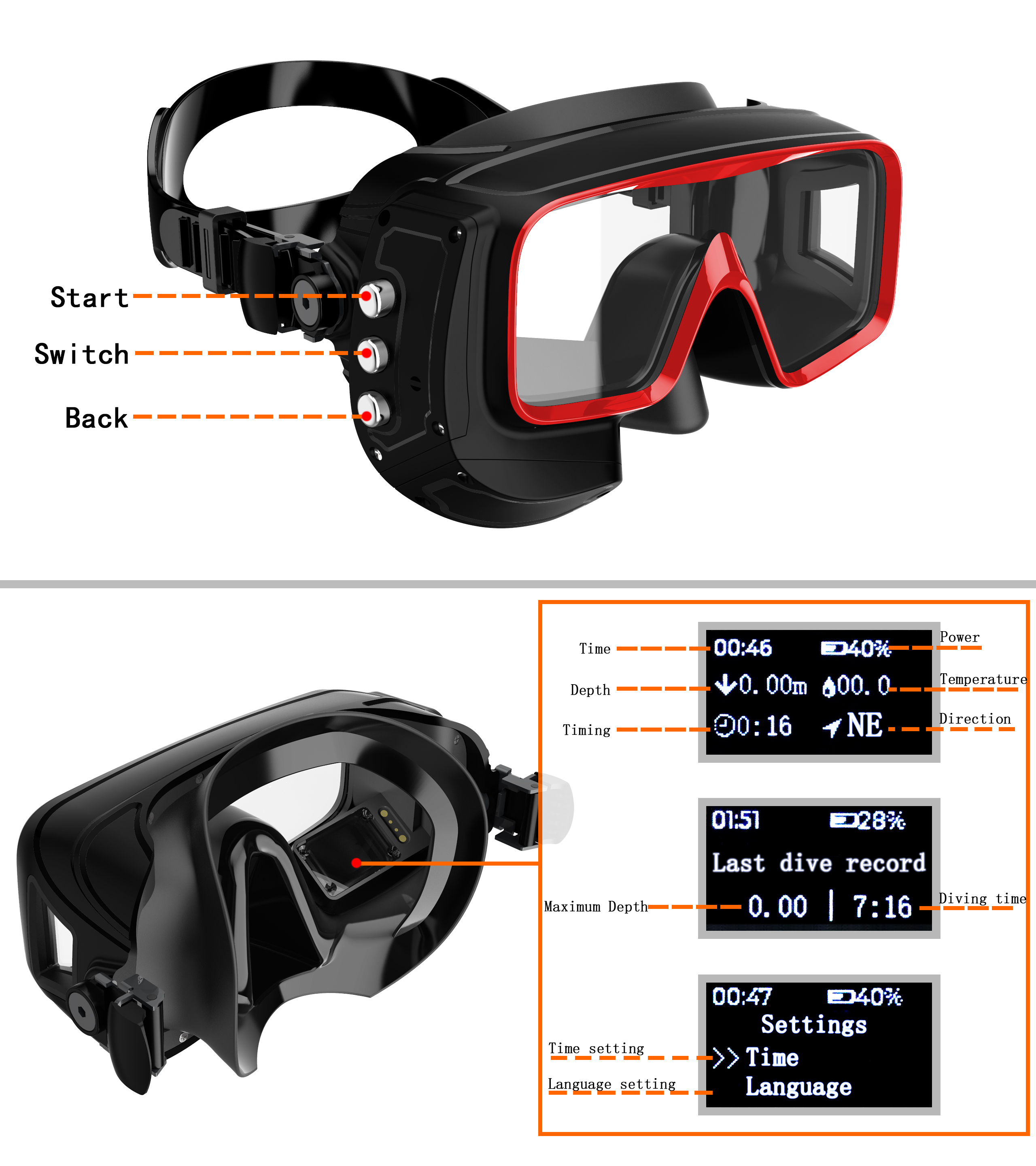

• Real-time display window, clearly display the diving depth, time, diving record, etc
• The data on the right bottom screen can be read by nearsighted eyes with 500 degree
• Screen resolution 128*64
• Anti-fog
• MSDS, UN38.3, CE, FCC, PSE

Descriptions :

It is the world's first unique design for the diving mask integrated with diving computer, which make the whole diving trip safe . It is also be friendly for user experience of myopic eyes. The device is designed for solving the paint point for the diver who is inconvenient for check the diving computer in real-time. It can be used within 60m and can display the depth, direction, time, power, diving time , etc.

Specifications:

Applications :

It can be widely used by scuba diving, free diving, snorkelling, etc.

Operation use:

(1) Adjust the fixed band to the appropriate tightness before wearing the face mirror.

(2) First put the mirror on the right position of the face.

(3) Use the nose to inhale the mirror adsorption on the face.

(4) Adjust the left and right ends of the fixed band to appropriate tightness by quick adjustment buckle, and the fixed band of the mirror should be above the ear (tightness should not be too tight).

(5) Hair or head coverings (no hair or head coverings should be pressed on the skirt of the mirror).

(6) After diving, use quick adjustment buckle to loosen the fixed band of the mirror.

Common troubleshooting:

(1) Failure mode 1: water enters the mirror

Cause analysis:

A mirror skirt appeared pressure hair, pressure head cover;

B side mirror is too loose or too tight;

C) breathing through the nose;

Troubleshooting:

A. After wearing the face mirror, check whether the hair and head cover press the skirt of the face mirror;

B. Adjust the face mirror to appropriate tightness;

C Develop the habit of breathing through your mouth.

(2) Failure mode 2: The tightness of the mirror cannot be adjusted

Cause analysis:

A quick adjustment buckle is damaged;

B side mirror fixed belt pulling direction is wrong;

Troubleshooting:

A scrap treatment;

B. The direction of the fixed belt of the drawing mirror should be the rear direction of both sides rather than the oblique rear direction;

(3) Failure mode three: the lens is broken

Cause analysis:

A mirror hit by hard objects resulting in damage;

Troubleshooting:

A replace or repair parts;

B Diving equipment maintenance service point or manufacturer maintenance.
