Diving First Stage Head Regulator Technical Diving Scuba Diving Is
Available

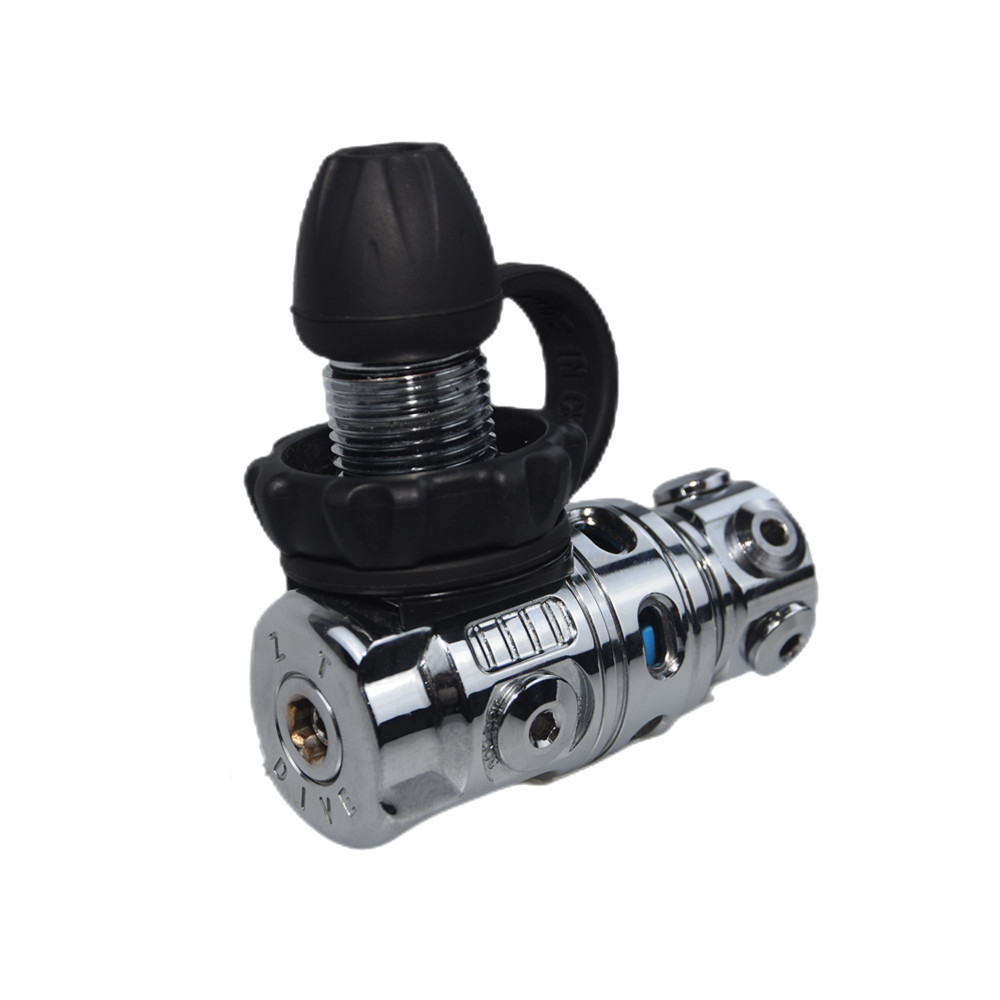

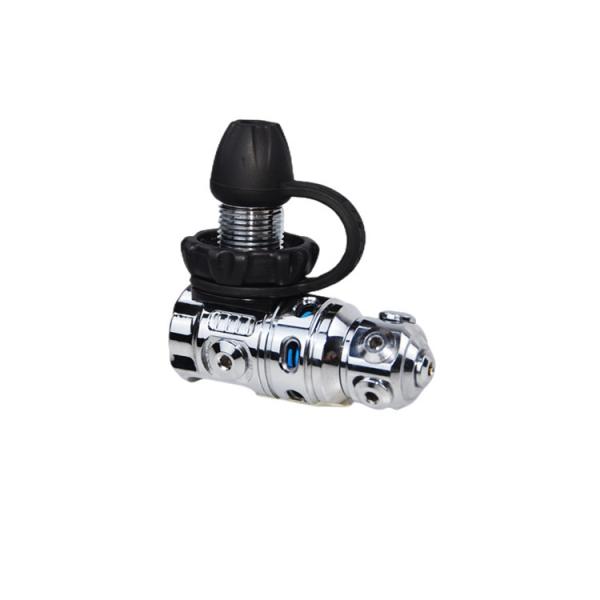

Regulator First stages ZT102Y
Descriptions
•Balanced piston design with brass and chrome plating provides
stable and adequate airflow at different depths, bottle pressures
and breathing rates
•External adjustable medium voltage allows technicians to fine tune
it quickly and easily
•Rotating MEDIUM pressure tower design, 4 transverse medium
pressure and 1 axial ultra high flow medium pressure ports provide
better hose or emitter alignment layout
•The new interior anti-freeze design allows divers to maintain good
breathing effect in cold water environment
•EN250/2016 standard
Specifications
| Ports | 5 medium voltage ports 3/8 "-24UNf, 2 high voltage ports 7/16"
-20UNf; Rotate the medium pressure hole position |
| Relative medium pressure | 0.9±0.1mpa |
| Model | DIN/INT is optional |
| Type | It has frost resistance |
| Average output flow | ≥1000 L/min |
| Weight | 600g /DIN |
Warnings and Precautions:
(1) Special care must be taken if the warning instructions or
instructions are not ignored which may result in serious injury or
death to the user.
(2) The lightweight diving equipment complies with the REQUIREMENTS
of THE EN 250 standard, but does not mean that the user's equipment
is in perfect condition for each dive.
(3) If the light diving gear has been installed and used more than
once, or in cold waters, the respiratory impedance and performance
may not fully comply with EN 250.
(4) Before using the equipment, the user must first complete
training and obtain a license from an accredited scuba diving
professional organization.
(5) The use of diving equipment without professional training and
license may cause serious injury to the user, or even death.
Special care must be taken.
(6) This equipment shall not be provided for diving by untrained
personnel or personnel without such knowledge. This is extremely
dangerous and can cause serious injury to the user or even death.
Special care must be taken.
(7) This equipment shall not be used for other equipment and
facilities not belonging to the diving activities or industrial
equipment, etc..
