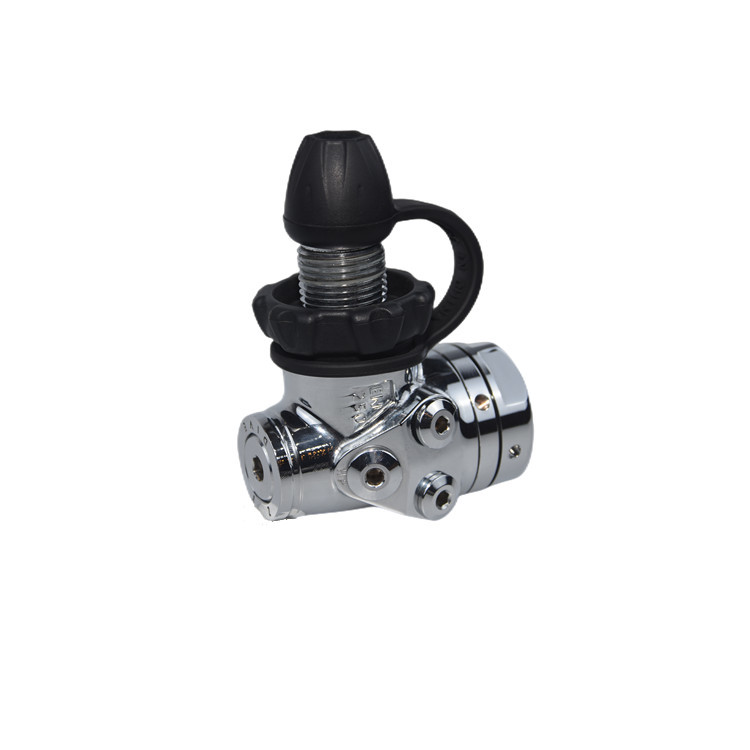

ZT103Y Diving First Class Head Yoke Interface Brass Material
Balanced Diaphragm Type
Regulator First stages ZT103Y
Descriptions
Solid and reliable brass chrome plated material with adjustable
external relative medium pressure
Balanced diaphragm type, internal diaphragm seal design, can reduce
the instant medium pressure drop caused by inspiratory
Medium and high pressure ports are arranged on a shaft parallel to
the air inlet to facilitate hose routing
With frost resistance, can be used in cold water environment
Detachable orifice for easier maintenance and longer regulator life
Larger, more efficient tapered filter allows easy fixing of valve
to cylinder
EN250/2016 standard
Specifications
| Ports | Four medium pressure ports 3/8 "to 24UNF, two high pressure ports
7/16" to 20UNF |
| Relative medium pressure | Relative medium pressure: 0.9±0.1mpa |
| Model | Balanced diaphragm type |
| Type | DIN/INT is optional |
| Average output flow | Average output flow: ≥1000 L/min |
| Weight | Weight: 750 g /Din |
Warnings and Precautions
(1) Special care must be taken if the warning instructions or
instructions are not ignored which may result in serious injury or
death to the user.
(2) If the light diving gear has been installed and used more than
once, or in cold waters, the respiratory impedance and performance
may not fully comply with EN 250.
(3) Before using the equipment, the user must first complete
training and obtain a license from an accredited scuba diving
professional organization.
(4) This equipment shall not be provided for diving by untrained
personnel or personnel without such knowledge. This is extremely
dangerous and can cause serious injury to the user or even death.
Special care must be taken.
(5) This equipment shall not be used for other equipment and
facilities not belonging to the diving activities or industrial
equipment, etc..
